Fisher Pierce OLC
480VAC to 120VAC Step-Down Streetlight Power Tap Adapter, Continuous On, 3 Pin
(No reviews yet)
Write a Review
- SKU:
- FP289A-120-DNC
- MPN:
- FP289A-120-DNC
- Condition:
- New
- Availability:
- In Stock - Ships Same Day
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Manufacturer Part Number: FP289A-120-DNC

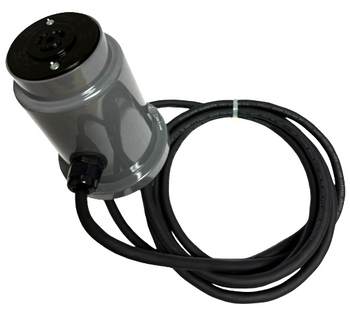

The FP289A-120-DNC streetlight power tap adapter provides stepped down 120V AC power to your ancillary devices from 480VAC available at the luminaire. Works with any luminaire that utilizes a photocontrol and NEMA standard locking type receptacle. It is typically offered with an SEOOW 16/2 AWG cable with a flush cut termination.
Also available with other connector types, different cable lengths, and different DC/AC/POE outputs.
Key Features
- Provides stepped-down 120 VAC power to outdoor wireless equipment
- 10 ft, 2 wire, 16AWG SEOOW cord (durable and ozone, aging, and abrasion resistant)
- Simple twist-lock installation; does not interfere with normal luminaire photocontrol operation
- Output power is subject to De-Rating over higher temperatures
| Key Specifications | |
| Device Type | AC Step-Down, Continuous-On Tap, Streetlight Adapter |
| Additional Features | 3-Pin (No Control Pass-Through) |
| Electrical Specification | |
| Input Voltage (AC) | 480 VAC |
| Power Input Interface | Twist-lock (ANSI C136.10) |
| Power Output Interface | Wire Terminal |
| Output Voltage (AC) | 120 VAC |
| Power Output | 50 Watts |
| Mechanical Specification | |
| Dimensions (Inches) | 4.4 Dia x 5.5 Height |
| Output Cable Type | 16/2 SOOW (2 Conductor, 16 AWG) |
| Output Cable Length | 10 ft |
| Legal, Regulatory & Compliance | |
| Compliance | ANSI C136.10 |
| Please contact an RFWEL Remote Power Solutions Specialist if you have questions on the specs. | |
| Compare Related Power Tap Specs | ||||
| Item | Output Voltage | Output Connector | Output Cable Length | Control Pass-Through |
|
5730-10-2
| 120 VAC | 2 prong receptacle (female) | 10 ft | |
|
5731-10-1
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
5731-10-2
| 120 VAC | 2 prong receptacle (female) | 10 ft | No (3-pin) |
|
5731-10-3
| 120 VAC | Mini-Link (Female) | 10 ft | No (3-pin) |
|
5731-20-1
| 120 VAC | Bare Wire (Pigtail) | 20 ft | No (3-pin) |
|
5731-20-2
| 120 VAC | 2 prong receptacle (female) | 20 ft | No (3-pin) |
|
5731-20-3
| 120 VAC | Mini-Link (Female) | 20 ft | No (3-pin) |
|
5771-10-1
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
5771-10-2
| 120 VAC | 2 prong receptacle (female) | 10 ft | Yes (7-pin) |
|
5771-10-3
| 120 VAC | Mini-Link (Female) | 10 ft | Yes (7-pin) |
|
5771-20-1
| 120 VAC | Bare Wire (Pigtail) | 20 ft | Yes (7-pin) |
|
5771-20-2
| 120 VAC | 2 prong receptacle (female) | Yes (7-pin) | |
|
5771-25-1
| 120 VAC | Bare Wire (Pigtail) | 25 ft | Yes (7-pin) |
|
5771-25-2
| 120 VAC | 2 prong receptacle (female) | 25 ft | Yes (7-pin) |
|
5771-25-3
| 120 VAC | Mini-Link (Female) | 25 ft | Yes (7-pin) |
|
5841-14-8-2 (MPN: 5842-14/8-2)
| 120 VAC | 2 prong receptacle (female) | 22 ft | Yes (7-pin) |
|
5970-30B6-120-120
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
5970-3DB6-120-120
| 120 VAC | Bare Wire (Pigtail), NEMA 5-15R (3 prong receptable) | 10 ft | No (3-pin) |
|
5970-70B6-120-120
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
5970-7DB6-120-120
| 120 VAC | Bare Wire (Pigtail), NEMA 5-15R (3 prong receptable) | 10 ft | Yes (7-pin) |
|
5730-10-2_DC12V10A (MPN: 5730-10-2+DC12V10A)
| 120 VAC/ 12 VDC | 2 prong receptacle (female) | 10 ft | |
|
FP283A (MPN: FP283A-7865)
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
| FP283A_U (MPN: FP283A-7865) | 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP283A-1-120-NNN
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP283A-7-120-NNN
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP283A-7-300-NNN
| 120 VAC | Wire Terminal | 25 ft | Yes (7-pin) |
|
FP285A (MPN: FP-285)
| 120 VAC | Type B Socket | ||
|
FP287A-120-ACN
| 48 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP287A-120-ACN-A
| 48 VDC | RJ45, Type 1 POE (802.3af) | 10 ft | Yes (7-pin) |
|
FP287A-120-ADN
| 48 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP287A-120-ADN-A
| 48 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP287A-120-BCN
| 48 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP287A-120-BCN-A
| 48 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP287A-180-BEN-A
| POE, RJ45, Type 1 POE (802.3af), Type 2 POE+ (802.3at), Type 4 POE++ (802.3bt) | 15 ft | Yes (7-pin) | |
|
FP288A-120-BAN
| 12 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP288A-120-BAN-A
| 12 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP288A-120-BBN
| 24 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP288A-120-BBN-A
| 24 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP288A-300-BAN-A
| 12 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-300-BBN (MPN: FP288A-300-BBN-A)
| 24 VDC | RJ45 | 25 ft | No (3-pin) |
|
FP288A-300-BBN-A
| 24 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-300-BCN
| 48 VDC | RJ45 | 25 ft | No (3-pin) |
|
FP288A-300-BCN-A
| 48 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-300-BDN
| 48 VDC | RJ45 | 25 ft | No (3-pin) |
|
FP288A-300-BDN-A
| 48 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-8611
| 12 VDC | Bare Wire (Pigtail) | 25 ft | Yes (7-pin) |
|
FP289A-120-CNB
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-120-CNB-100W (MPN: FP289A-120-CNK)
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-120-CNB-A
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP289A-120-CNB-A-100W (MPN: FP289A-120-CNK-A)
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP289A-120-FNH
| 120 VAC | Bare Wire (Pigtail) | No (3-pin) | |
|
FP289A-120-FNH-A
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP289A-240-END
| 120 VAC | Bare Wire (Pigtail) | 20 ft | No (3-pin) |
|
FP289A-240-END-A
| 120 VAC | Bare Wire (Pigtail), Wire Terminal | 20 ft | Yes (7-pin) |
|
FP289A-240-ENL
| 120 VAC | Bare Wire (Pigtail) | 20 ft | No (3-pin) |
|
FP289A-240-ENL-A
| 120 VAC | Bare Wire (Pigtail) | 20 ft | Yes (7-pin) |
|
FP289A-120-DNC-A
| 120 VAC | Wire Terminal | 10 ft | Yes (7-pin) |
|
FP289A-120-DNF
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-120-DNF-A
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
. . . search for additional items with specific features using the Power Tap filter.
Warranty Information
Manufacturer warranty runs for 1 year from delivery date. Rfwel Engr support handles warranty repairs/replacements for this item.
View AllClose
Additional Information
Device Type: |
AC Step-Down |
Device Type: |
Continuous-On Tap |
Device Type: |
Streetlight Adapter |
Power Input Interface: |
Twist-lock (ANSI C136.10) |
Compliance: |
ANSI C136.10 |
Input Voltage: |
480 VAC |
Additional Features: |
3-Pin (No Control Pass-Through) |
Power Output Interface: |
Wire Terminal |
Power Output (W): |
50 |
Output Cable Type: |
16/2 SOOW (2 Conductor, 16 AWG) |
Output Cable Length (ft): |
10 |
Output Voltage: |
120 VAC |
