Fisher Pierce OLC

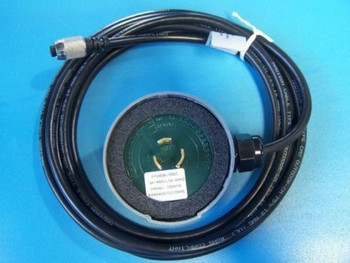

7 Pin FP289A-120-FNH-A, 208 to 120V AC Streetlight PowerTap Adapter rated for 100W
(No reviews yet)
Write a Review
- SKU:
- FP289A-120-FNH-A
- MPN:
- FP289A-120-FNH-A
- Condition:
- New
- Minimum Purchase:
- 1 unit
Frequently bought together:
Description
Manufacturer Part Number: FP289A-120-FNH-A
The FP289A-120-FNH-A streetlight will output stepped down 120V AC power to your ancillary devices from 208V AC available at the luminaire. Works with any luminaire that utilizes a photocontrol and NEMA standard locking type receptacle. It is typically offered with an SEOOW 16/2 AWG cable with a flush cut termination (also available with other custom terminations).
They enable powering of different pole-mount ancillary equipment like: Wireless Access Points, Surveillance Cameras, Traffic Monitoring Sensors, Security Cameras, Other communications and UPS/ Backup Power systems
Key Features
- 10 ft, 2 wire, 16AWG SEOOW cord (durable and ozone, aging, and abrasion resistant)
- Simple twist-lock installation; does not interfere with normal luminaire photocontrol operation
- Provides stepped-down 120 VAC power to outdoor wireless equipment
- Also available with DC/POE output, different cable lengths, and connector type
| Key Specifications | |
| Device Type | AC Step-Down, Continuous-On Tap, Streetlight Adapter |
| Additional Features | 7-Pin (Control Pass-Through) |
| Electrical Specification | |
| Input Voltage (AC) | 208 VAC |
| Power Consumption | 100 W |
| Power Input Interface | Twist-lock (ANSI C136.10) |
| Power Output Interface | Bare Wire (Pigtail) |
| Output Voltage (AC) | 120 VAC |
| Power Output | 100 Watts |
| Mechanical Specification | |
| Mounting | Twist-lock |
| Dimensions (Inches) | 4.4 Dia x 5.5 Height |
| Construction Material | UV Stabilized, Polypropylene |
| Output Cable Type | 16/2 SOOW (2 Conductor, 16 AWG) |
| Output Cable Length | 10 ft |
| Legal, Regulatory & Compliance | |
| Compliance | ANSI C136.10, ANSI C136.41 |
| Please contact an RFWEL Remote Power Solutions Specialist if you have questions on the specs. | |
| Compare Related Power Tap Specs | ||||
| Item | Output Voltage | Output Connector | Output Cable Length | Control Pass-Through |
|
FP283A (MPN: FP283A-7865)
| 120 VAC | Bare Wire (Pigtail) | 12 ft | No (3-pin) |
|
FP283A-1-120-NNN
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP283A-7-120-NNN
| 120 VAC | Micro-Link (Female) | 10 ft | Yes (7-pin) |
|
FP283A-7-300-NNN
| 120 VAC | Wire Terminal | 25 ft | Yes (7-pin) |
|
FP285A (MPN: FP-285)
| 120 VAC | Type B Socket | ||
|
FP287A-120-ACN
| 48 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP287A-120-ACN-A
| 48 VDC | RJ45, Type 1 POE (802.3af) | 10 ft | Yes (7-pin) |
|
FP287A-120-ADN
| 48 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP287A-120-ADN-A
| 48 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP287A-120-BCN
| 48 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP287A-120-BCN-A
| 48 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP287A-180-BEN-A
| POE, RJ45, Type 1 POE (802.3af), Type 2 POE+ (802.3at), Type 4 POE++ (802.3bt) | 15 ft | Yes (7-pin) | |
|
FP288A-120-BAN
| 12 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP288A-120-BAN-A
| 12 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP288A-120-BBN
| 24 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP288A-120-BBN-A
| 24 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP288A-300-BAN-A
| 12 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-300-BBN (MPN: FP288A-300-BBN-A)
| 24 VDC | RJ45 | 25 ft | No (3-pin) |
|
FP288A-300-BBN-A
| 24 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-300-BCN
| 48 VDC | RJ45 | 25 ft | No (3-pin) |
|
FP288A-300-BCN-A
| 48 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-300-BDN
| 48 VDC | RJ45 | 25 ft | No (3-pin) |
|
FP288A-300-BDN-A
| 48 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-8611
| 12 VDC | Bare Wire (Pigtail) | 25 ft | Yes (7-pin) |
|
FP289A-120-CNB
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-120-CNB-100W (MPN: FP289A-120-CNB-HP-100W)
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-120-CNB-A
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP289A-120-CNB-A-100W
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP289A-240-END
| 120 VAC | Bare Wire (Pigtail) | 20 ft | No (3-pin) |
|
FP289A-240-END-A
| 120 VAC | Bare Wire (Pigtail), Wire Terminal | 20 ft | Yes (7-pin) |
|
FP289A-240-ENL
| 120 VAC | Bare Wire (Pigtail) | 20 ft | No (3-pin) |
|
FP289A-240-ENL-A
| 120 VAC | Bare Wire (Pigtail) | 20 ft | Yes (7-pin) |
. . . search for additional items with specific features using the Power Tap filter.
Warranty Information
Manufacturer warranty runs for 1 year from delivery date. Rfwel Engr support handles warranty repairs/replacements for this item.
