Ripley Lighting Controls

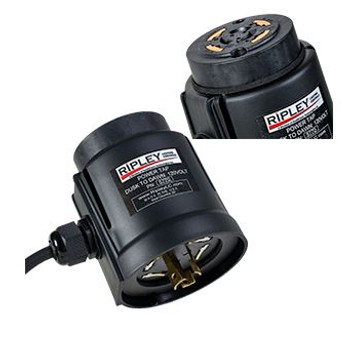

120V Photocell Power Tap, Retains Dimming Control, 25 ft pigtail end

(No reviews yet) Write a Review
SKU:
5771-25-1
UPC:
748528964816
MPN:
5771-25-1
Condition:
New
Availability:
In Stock - Ships Same Day
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
  • 120V Photocell Power Tap, Retains Dimming Control, 25 ft pigtail end
  • 120V Photocell Power Tap, Retains Dimming Control, 25 ft pigtail end
$159.99
Frequently bought together:

Description

Manufacturer Part Number: 5771-25-1

This streetlight photocell power tap adapter draws constant 120V AC power from streetlight luminaire or lighting pole. This version includes a 7-pin ANSI C136.41 receptacle for dimming control pass-through (allows the luminaire to retain dimming & signal contacts functionality). For use with wireless equipment, surveillance cameras, traffic monitoring, and other communication and UPS (uninterruptible power supply) systems. This power tap adapter is also available without connector (bare wire to radio equipment power interface), with other connector types, different cable length, and different power outputs.

Key Features

  • Draws constant 120V AC power from Streetlight Luminaires (with Auto Reset Breaker)
  • Simple twist-lock installation; does not interfere with normal luminaire photocontrol operation
  • 7-pin ANSI C136.41 receptacle for dimming control pass-through
  • 25 ft bare power cord (pigtail)
  • Heavy Duty, Utility Grade, Built For Harsh Outdoor Elements and Environment

Key Specifications
Device Type Streetlight Adapter, Continuous-On Tap
Additional Features 7-Pin (Control Pass-Through)
Electrical Specification
Input Voltage (AC) 120 VAC
Input Voltage Range 105 - 135 V
Input Current 10 A
Power Input Interface 3 prong plug, Twist-lock (ANSI C136.10)
Power Output Interface Bare Wire (Pigtail)
Output Voltage (AC) 120 VAC
Mechanical Specification
Mounting Twist-lock
Output Cable Length 25 ft
Legal, Regulatory & Compliance
Compliance ANSI C136.10, ANSI C136.41
Please contact an RFWEL Remote Power Solutions Specialist if you have questions on the specs.

Compare Related Power Tap Specs
Item Output Voltage Output Connector Output Cable Length Control Pass-Through
5731-10-2

5731-10-2 image

120 VAC 2 prong receptacle (female) 10 ft No (3-pin)
5731-10-3

5731-10-3 image

120 VAC Mini-Link (Female) 10 ft No (3-pin)
5731-20-1

5731-20-1 image

120 VAC Bare Wire (Pigtail) 20 ft No (3-pin)
5731-20-2

5731-20-2 image

120 VAC 2 prong receptacle (female) 20 ft No (3-pin)
5731-20-3

5731-20-3 image

120 VAC Mini-Link (Female) 20 ft No (3-pin)
5771-10-2

5771-10-2 image

120 VAC 2 prong receptacle (female) 10 ft Yes (7-pin)
5771-10-3

5771-10-3 image

120 VAC Mini-Link (Female) 10 ft Yes (7-pin)
5771-25-1

5771-25-1 image

120 VAC Bare Wire (Pigtail) 25 ft Yes (7-pin)
5771-25-2

5771-25-2 image

120 VAC 2 prong receptacle (female) 25 ft Yes (7-pin)
5771-25-3

5771-25-3 image

120 VAC Mini-Link (Female) 25 ft Yes (7-pin)
5841-14-8-2 (MPN: 5842-14/8-2)

5841-14-8-2 image

120 VAC 2 prong receptacle (female) 22 ft

. . . search for additional items with specific features using the Power Tap filter.

Quick Links

Datasheet

Power Backup Solutions (for Wireless)

Select Case Studies

Support Knowledge Base

Discuss in the Forums

Ask a Question

Reference Power Solutions Drawings


Select Content

Power Tap Basics

View More Engineering Articles ...

View AllClose

Warranty Information

Manufacturer warranty runs for 1 year from delivery date. Rfwel Engr support handles warranty repairs/replacements for this item.
