Fisher Pierce OLC

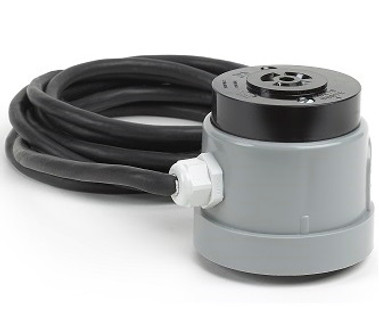

120V AC Streetlight Power Tap Adapter, Continuous On, 20ft Cable
(No reviews yet)
Write a Review
- SKU:
- FP283A-1-240-N-N-N
- MPN:
- FP283A-1-240-N-N-N
- Condition:
- New
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Manufacturer Part Number: FP283A-1-240-N-N-N
The Series FP283A Power Tap Adapter is compatible with any luminaire equipped with a photocontrol and locking-type receptacle. It installs between the photocontrol or shorting cap and the receptacle to deliver constant AC power and is commonly used with 120-240 VAC luminaires.
Designed for use with wireless equipment, surveillance cameras, traffic monitoring systems, gunshot detection devices, and other communication or uninterruptible power supply (UPS) applications.
Contact us for use with voltage regulators (e.g., to provide a specified DC voltage) and other outdoor battery backup UPS systems.
Key Features
- Provides constant AC power (receptacle input voltage equals cable output voltage)
- 20 ft, bare wire, 16 AWG 2 SOOW cord (durable and ozone, aging, and abrasion resistant)
- Simple twist-lock installation; does not interfere with normal luminaire photocontrol operation
- Compliant with ANSI C136.10 for roadway/street and area lighting
- Also available with DC/POE output, different cable lengths, and connector types
| Key Specifications | |
| Device Type | Streetlight Adapter, Continuous-On Tap |
| Additional Features | 3-Pin (No Control Pass-Through) |
| Electrical Specification | |
| Input Voltage Range | 120 - 240 V |
| Power Input Interface | Twist-lock (ANSI C136.10) |
| Power Output Interface | Bare Wire (Pigtail) |
| Output Voltage (AC) | 120 VAC |
| Output Current | 10 A |
| Mechanical Specification | |
| Mounting | Twist-lock |
| Weatherproofing | Cross linked polyethylene gasket |
| Construction Material | UV Stabilized, High Temp, Polypropylene, ABS |
| Output Cable Type | 16/2 SOOW (2 Conductor, 16 AWG), 16 AWG, SOOW |
| Output Cable Length | 20 ft |
| Legal, Regulatory & Compliance | |
| Compliance | ANSI C136.10 |
| Please contact an RFWEL Remote Power Solutions Specialist if you have questions on the specs. | |
| Compare Related Power Tap Specs | ||||
| Item | Output Voltage | Output Connector | Output Cable Length | Control Pass-Through |
|
FP283A (MPN: FP283A-7865)
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP283A-1-120-NNN
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP283A-7-120-NNN
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP283A-7-300-NNN
| 120 VAC | Wire Terminal | 25 ft | Yes (7-pin) |
|
FP285A (MPN: FP-285)
| 120 VAC | Type B Socket | ||
|
FP287A-120-ACN
| 48 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP287A-120-ACN-A
| 48 VDC | RJ45, Type 1 POE (802.3af) | 10 ft | Yes (7-pin) |
|
FP287A-120-ADN
| 48 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP287A-120-ADN-A
| 48 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP287A-120-BCN
| 48 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP287A-120-BCN-A
| 48 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP287A-180-BEN-A
| POE, RJ45, Type 1 POE (802.3af), Type 2 POE+ (802.3at), Type 4 POE++ (802.3bt) | 15 ft | Yes (7-pin) | |
|
FP288A-120-BAN
| 12 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP288A-120-BAN-A
| 12 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP288A-120-BBN
| 24 VDC | RJ45 | 10 ft | No (3-pin) |
|
FP288A-120-BBN-A
| 24 VDC | RJ45 | 10 ft | Yes (7-pin) |
|
FP288A-120-BGN
| 24 VDC | No (3-pin) | ||
|
FP288A-120-BGN-A
| 24 VDC | Yes (7-pin) | ||
|
FP288A-300-BBN-A
| 24 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-300-BCN-A
| 48 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-300-BDN
| 48 VDC | RJ45 | 25 ft | No (3-pin) |
|
FP288A-300-BDN-A
| 48 VDC | RJ45 | 25 ft | Yes (7-pin) |
|
FP288A-8611
| 12 VDC | Bare Wire (Pigtail) | 25 ft | Yes (7-pin) |
|
FP289A-120-CNB
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-120-CNB-100W (MPN: FP289A-120-CNK)
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-120-CNB-A
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP289A-120-CNB-A-100W (MPN: FP289A-120-CNK-A)
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP289A-120-DNC
| 120 VAC | Wire Terminal | 10 ft | No (3-pin) |
|
FP289A-120-DNC-A
| 120 VAC | Wire Terminal | 10 ft | Yes (7-pin) |
|
FP289A-120-DNF
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-120-DNF-A
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
FP289A-120-FNH
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-120-FNH-A
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
| FP283A_U (MPN: FP283A-7865) | 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
FP289A-240-END
| 120 VAC | Bare Wire (Pigtail) | 20 ft | No (3-pin) |
|
FP289A-240-END-A
| 120 VAC | Bare Wire (Pigtail), Wire Terminal | 20 ft | Yes (7-pin) |
|
FP289A-240-ENL
| 120 VAC | Bare Wire (Pigtail) | 20 ft | No (3-pin) |
|
FP289A-240-ENL-A
| 120 VAC | Bare Wire (Pigtail) | 20 ft | Yes (7-pin) |
|
5730-10-2
| 120 VAC | 2 prong receptacle (female) | 10 ft | |
|
5731-10-1
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
5731-10-2
| 120 VAC | 2 prong receptacle (female) | 10 ft | No (3-pin) |
|
5731-10-3
| 120 VAC | Mini-Link (Female) | 10 ft | No (3-pin) |
|
5731-20-1
| 120 VAC | Bare Wire (Pigtail) | 20 ft | No (3-pin) |
|
5731-20-2
| 120 VAC | 2 prong receptacle (female) | 20 ft | No (3-pin) |
|
5771-10-1
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
5771-10-2
| 120 VAC | 2 prong receptacle (female) | 10 ft | Yes (7-pin) |
|
5771-10-3
| 120 VAC | Mini-Link (Female) | 10 ft | Yes (7-pin) |
|
5771-20-1
| 120 VAC | Bare Wire (Pigtail) | 20 ft | Yes (7-pin) |
|
5771-20-2
| 120 VAC | 2 prong receptacle (female) | Yes (7-pin) | |
|
5771-25-1
| 120 VAC | Bare Wire (Pigtail) | 25 ft | Yes (7-pin) |
|
5771-25-2
| 120 VAC | 2 prong receptacle (female) | 25 ft | Yes (7-pin) |
|
5771-25-3
| 120 VAC | Mini-Link (Female) | 25 ft | Yes (7-pin) |
|
5970-30B6-120-120
| 120 VAC | Bare Wire (Pigtail) | 10 ft | No (3-pin) |
|
5970-3DB6-120-120
| 120 VAC | Bare Wire (Pigtail), NEMA 5-15R (3 prong receptable) | 10 ft | No (3-pin) |
|
5970-70B6-120-120
| 120 VAC | Bare Wire (Pigtail) | 10 ft | Yes (7-pin) |
|
5970-7DB6-120-120
| 120 VAC | Bare Wire (Pigtail), NEMA 5-15R (3 prong receptable) | 10 ft | Yes (7-pin) |
. . . search for additional items with specific features using the Power Tap filter.
Warranty Information
Manufacturer warranty runs for 1 year from delivery date. Rfwel Engr support handles warranty repairs/replacements for this item.
View AllClose
Additional Information
Device Type: |
Streetlight Adapter |
Device Type: |
Continuous-On Tap |
Min Input Voltage (V): |
120 |
Max Input Voltage (V): |
240 |
Power Input Interface: |
Twist-lock (ANSI C136.10) |
Mounting: |
Twist-lock |
Weatherproofing: |
Cross linked polyethylene gasket |
Construction: |
UV Stabilized |
Construction: |
High Temp |
Construction: |
Polypropylene |
Construction: |
ABS |
Compliance: |
ANSI C136.10 |
Additional Features: |
3-Pin (No Control Pass-Through) |
Power Output Interface: |
Bare Wire (Pigtail) |
Output Current (A): |
10 |
Output Cable Type: |
16/2 SOOW (2 Conductor, 16 AWG) |
Output Cable Type: |
16 AWG |
Output Cable Type: |
SOOW |
Output Cable Length (ft): |
20 |
Output Voltage: |
120 VAC |
