Tycon Power Systems TP-SW8NC-OUT24 8 Port 10/100 24VDC POE Switch

(No reviews yet) Write a Review
SKU:
TP-SW8NC-OUT24
MPN:
TP-SW8NC-OUT24
Condition:
New
Availability:
Discontinued
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
$339.49
Frequently bought together:

Description

Manufacturer Part Number: TP-SW8NC-OUT24

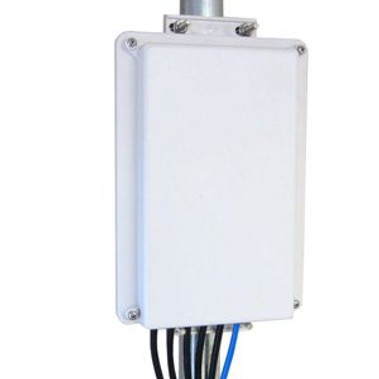

The TP-SWxxNC-OUT series of outdoor POE switch are designed for operation in harsh outdoor environments. The switch can be powered via a wire terminal connector or over POE into the uplink port. This allows the switch to be mounted where it is needed and up to 100m from a power source. By using the switch as a repeater, the useable Cat5 cable distance between power source and user POE devices can be doubled to 200m.

The switch is available in a 5 port Gigabit model and an 8 port 10/100 model and two different POE voltages, a 24VDC POE model and a 48VDC POE model. The model can be changed in the field just by changing the power supply voltage which powers the switch. The switches are supplied with 150W AC to DC power supplies with Gigabit POE inserters.

The 24VDC POE model is compatible with devices like UBNT and Mikrotik. The 48VDC POE model is compatible with any device that complies with the 802.3af/at standard. Applications: Wireless Access Points and Client Devices IP Phone and Security Camera Systems Power Multiple Devices from 1 Data/POE Cable

Key Features

  • High Power Outdoor Passive POE Switch
  • 5 Port Gigabit and 8 Port 10/100 Models with Automatic MDI/MDI-X Crossover
  • Automatic Speed and Duplex Sensing 2K with Self Learning MAC Address Table
  • Switch Powered thru POE to Uplink Port or Wire Terminal
  • Weatherproof UV Protected Enclosure, Pole or Wall Mount with High Temperature Operation



?

Key Specifications
Device Type IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE
Electrical Specification
Input Voltage Range 12 - 57 V
Output Voltage (DC) 24 VDC
Mechanical Specification
Dimensions (Inches) 11.5 x 7 x 2.5
Weight 4.2 lb
Operating Temperature -4 degF to 167 degF
Relative Humidity 100%, Non-Condensing
Please contact an RFWEL Remote Power Solutions Specialist if you have questions on the specs.

Compare Related Power Over Ethernet (POE) Specs
Item Type Ethernet Ports
TP-SW8NC-OUT24

TP-SW8NC-OUT24 image

IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE
TP-SW8NC-OUT48

TP-SW8NC-OUT48 image

IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE
TP-SW5GNC-OUT24

TP-SW5GNC-OUT24 image

IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE 5
TP-SW5GNC-OUT48

TP-SW5GNC-OUT48 image

IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE

. . . search for additional items with specific features using the Power Over Ethernet (POE) filter.

Quick Links

Datasheet

Power Backup Solutions (for Wireless)

Select Case Studies

Support Knowledge Base

Search TP-SW8NC-OUT24 articles

Discuss in the Forums

Search TP-SW8NC-OUT24 posts

Ask a Question

Reference Power Solutions Drawings


Select Content

Power Termination Options for Photocell Adapters

View More Engineering Articles ...

View AllClose

Warranty Information

Manufacturer warranty runs for 1 year from delivery date. Rfwel Engr support handles warranty repairs/replacements for this item.
View AllClose

Additional Information

Device Type:
IEEE 802.3af (Type 1) POE
Device Type:
IEEE 802.3at (Type 2) POE
Min Input Voltage (V):
12
Max Input Voltage (V):
57
Weight (Lb):
4.2
Min Operating Temp (degF):
-4
Max Operating Temp (degF):
167
Relative Humidity (%):
100
Output Voltage:
24 VDC
