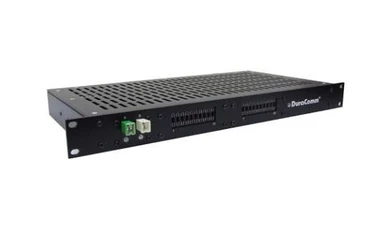

Slim Blade Fuse Distribution Panel

Manufacturer Part Number: DP-20ATC-2JC-24

The DP-20ATC-2JC-24 is a rack-mounted DC power distribution panel designed for 24 V telecommunications, radio, networking, and industrial power systems. It distributes power from a single DC source to as many as 22 protected load circuits: 20 standard blade-fuse positions and two additional JCASE fuse circuits. Each standard position supports up to 15 A, while the complete panel supports a maximum combined current of 100 A.

The panel occupies 1U of rack space and features front-accessible fuses and LED status indicators, with input and output connections at the rear. Its isolated inputs and outputs allow use in positive-ground, negative-ground, or floating applications. Two JCASE circuits support up to 40 A each, and one 30 A and one 40 A JCASE fuse are included. Standard ATC/ATO, ATM, Mini, and Micro blade fuses are not included.

Key Features

• 24 VDC power distribution
• 22 protected load circuits
• 100 A maximum panel capacity
• 15 A per standard position
• LED status indicators
