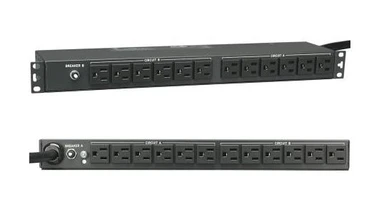

Single-Phase Basic PDU, 20A 120V, 1U, 24 5-15R

Manufacturer Part Number: PDU2430

The PDU2430 is a basic rackmount power distribution unit designed to supply AC power to multiple devices in server rooms, networking cabinets, telecommunications installations, and other IT environments. It provides 24 NEMA 5-15R outlets, with 12 on the front and 12 on the rear, allowing equipment to be powered from a single compatible AC source. Its rugged, all-metal housing fits a standard 19-inch equipment rack and occupies just 1U of rack space.

The PDU2430 features a 15-foot power cord with a NEMA L5-30P input plug, a switchless design to help prevent accidental shutdowns, and two 15 A circuit breakers that protect separate outlet banks against overloads. Its reversible housing also supports alternative mounting arrangements, including wall or under-counter installation.

Key Features

• 24 NEMA 5-15R AC outlets, split between front and rear panels
• 120 V AC single-phase power distribution
• 30 A input plug with a 15-foot (4.57 m) cord
• Dual 15 A circuit breakers for overload protection
• Switchless operation to reduce accidental power interruptions
