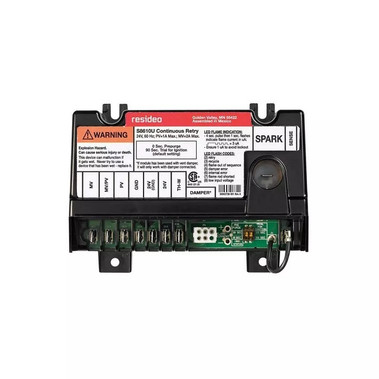

Residio S8610U3009 Universal Intermittent Pilot Module
(No reviews yet)
Write a Review
- SKU:
- S8610U3009
- MPN:
- S8610U3009
- Condition:
- New
- Availability:
- In Stock - Ships Next Day
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Manufacturer Part Number: S8610U3009
The Resideo S8610U3009 Universal Intermittent Pilot Module is a versatile replacement ignition control designed for gas-fired furnaces, boilers, and other heating appliances that utilize intermittent pilot ignition systems. The module provides reliable ignition sequencing, flame monitoring, and automatic safety shutoff to ensure safe and efficient operation. It supports both natural gas and LP gas applications and works with single-rod or dual-rod flame sensing systems, making it suitable for a wide range of residential and commercial heating equipment.
Key Features
- Operates on a standard 24 VAC power supply
- Features continuous retry ignition logic that automatically attempts to relight the pilot after a failed ignition
- Includes spark cable adapters, installation accessories, and cross-reference guides for quick field replacement.
- Compatible with both Natural Gas and LP (Propane) gas systems
- Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 2A Main @ 165F; 1A Pilot, 1A Main @ 175F
| Key Parameters | ||||||
| Compatible Brands | Honeywell, Resideo, Robertshow | |||||
| Electrical Specification | ||||||
| Input Voltage (AC) | 24 AC | |||||
| Mechanical Specification | ||||||
| Dimensions (Inches) | 3.9 x 2.6 x 5.4 | |||||
| Operating Temperature | -40 degF to 165 degF | |||||
| Please contact an RFWEL HVAC specialist if you have questions on the specs. | ||||||
Related Products
. . . search for additional items with specific features using the HVAC Accessories filter.
Additional Information
Compatible Brand: |
Honeywell |
Compatible Brand: |
Resideo |
Compatible Brand: |
Robertshow |
Weight (Lb): |
2 |
