GE

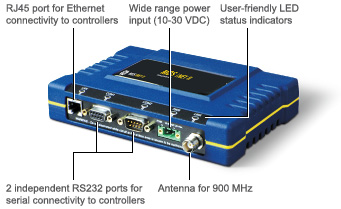

MDS iNET-II 900 Transceiver Radio
- SKU:
- MDSINETII900
- UPC:
- 888063249099
- MPN:
- iNETII-MD9-F-S
- Condition:
- New
- Availability:
- OUT OF STOCK
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
Description
This item is DISCONTINUED/ END-OF-LIFE (EOL).
Manufacturer Part Number: iNETII-MD9-F-S
The MDS iNET Series is an industrial wireless solution that provides long distance, unlicensed communications allowing users to interface with Ethernet and serial controllers. Comprised of the iNET 900 (generic MPN: INET-AP/DG) and iNET-II, the iNET Series offers the best balance of speed and range to enable a wide variety of applications requiring higher data capabilities than typical communication systems can provide.
The iNET Series combines the higher speed of Digital Transmission Systems (DTS) with the robustness of Frequency Hopping Spread Spectrum (FHSS) technology. Multiple layers of cyber security for iNET-II including: RADUIS authentication; VLAN traffic segregation; proprietary hopping patterns; and, AES 128-bit encryption.
Operation in extreme temperatures from -30?C to +60?C and is CSA Class 1/Div 2 approved for operation in hazardous locations. The iNET-II radio operates in the 900 MHz frequency band under the FCC rules for Industrial, Scientific, and Medical (ISM) equipment. Every system must have at least one access point service. You can choose between remote models that support serial only, Ethernet only or both types of interfaces (4 dual gateway).
Key Features
- Unlicensed IP/Ethernet and serial data communication
- High speed, long range point-to-multipoint with advanced interference mitigation algorithm
- Prevents unauthorized network access and secures wireless data
- Reduce configuration and integration costs with a single-box solution
- Operation in extreme temperature ranges and hazardous locations
Sample Application:
The iNET-II handles concurrent Ethernet from multiple sources, directly addresses the integrated serial device server using industry-standard protocols (e.g., Telnet, TCP, UDP), and serves as backhaul to MDS TransNET, SD, 4710 and 9710 radios.
Every iNET-II radio includes an SNMP agent and can be managed by MDS NETview or any other SNMP-based management system.
An access point radio can be configured to operate as a remote, serving as a common replacement for remote locations, thereby simplifying maintenance tasks in the field.
Please contact us for related accessories or alternate configuration.
| Key Specifications | |
| Type of Device | Industrial/ SCADA |
| Additional Details | P21 option 2U rack mountable. |
| Radio Specification | |
| Wireless Standards | Proprietary (CSMA/CA) |
| Speed | 1 Mbps |
| Frequency Bands | 900 MHz (ISM) |
| Data & Radio Ports | |
| Includes External Antenna Port? | Yes |
| Number of Antenna Ports | 1 |
| Antenna Port Type | TNC-Female |
| Number of Ethernet Ports | 1 |
| Number of Serial Ports | 2 |
| Electrical | |
| Voltage Input (DC) | 13.8 VDC |
| Voltage Input Range | 10.5 - 30 V |
| Mechanical | |
| Mounting | DIN Rail Mount, Flat Surface Mount |
| Dimensions (Inches) | 6.75 x 4.5 x 1.25 |
| Weight | 2 lb |
| Operating Temperature | -22 degF to 140 degF |
| Relative Humidity | 95%, Non-Condensing |
| Regulatory & Compliance | |
| Compliance | Class 1 DIV 2 |
| Please contact an RFWEL Radio Equipment Specialist if you cannot find what you need for your project. | |
Consider Related Products
- 03-4022A02: 35 mm DIN Rail Mounting Bracket for GE MDS Radios
- 03-4125A04: DIN Rail Mounting Bracket kit for MDS SD, iNET & entraNET AP's
. . . search for additional items with specific features using the IoT, SCADA & Data Radios filter.
Additional Information
Device Type: |
Industrial/ SCADA |
Wireless Standards: |
Proprietary (CSMA/CA) |
Speed (Mbps): |
1 |
Frequency Bands: |
900 MHz (ISM) |
Antenna Ports: |
1 |
Antenna Port Type: |
TNC-Female |
Ethernet Ports: |
1 |
Serial Ports: |
2 |
Mounting: |
DIN Rail Mount |
Mounting: |
Flat Surface Mount |
Compliance: |
Class 1 DIV 2 |
Voltage Input (VDC): |
13.8 |
Min Voltage Input (Volts): |
10.5 |
Max Voltage Input (Volts): |
30 |
Dimensions (Inches): |
6.75 x 4.5 x 1.25 |
Weight (Lb): |
2 |
Relative Humidity (%): |
95 |
