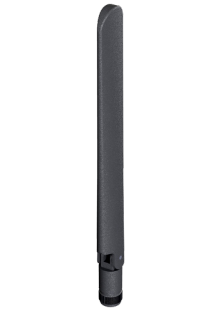

Linx Technologies ANT-5GWWS5-SMA Dipole Antenna for 5G and LTE
(No reviews yet)
Write a Review
- SKU:
- ANT-5GWWS5-SMA
- MPN:
- ANT-5GWWS5-SMA
- Condition:
- New
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Manufacturer Part Number: ANT-5GWWS5-SMA
The ANT-5GWWS5-SMA is a dipole, blade-style antenna designed for 5G New Radio, LTE, and cellular IoT applications, offering wide bandwidth and versatile positioning.
Key Features
- Wide Bandwidth 617 MHz to 5925 MHz
- Performance at 617 MHz to 698 MHz: VSWR ≤ 1.8, Peak Gain 1.6 dBi, Efficiency 60%
- Performance at 3300 MHz to 4200 MHz: VSWR ≤ 2.4, Peak Gain 4.2 dBi, Efficiency 71%
- Rugged ABS construction
- Hinged design with detents for 0°, 45°, and 90° positioning
| Electrical Specification | ||||||
| Mechanical Specification | ||||||
| Connector Type | SMA-Male | |||||
| Dimensions (Inches) | 7.1 x 0.9 x 0.5 | |||||
| Weight | 0.5 lb | |||||
| Please contact an RFWEL Indoor Coverage specialist if you have questions on the specs. | ||||||
Related Products
. . . search for additional items with specific features using the Antennas filter.
Additional Information
Connectors: |
SMA-Male |
Gain (dBi): |
4.2 |
Min Frequency (MHz): |
617 |
Max Frequency (MHz): |
5925 |
Weight (Lb): |
0.5 |
