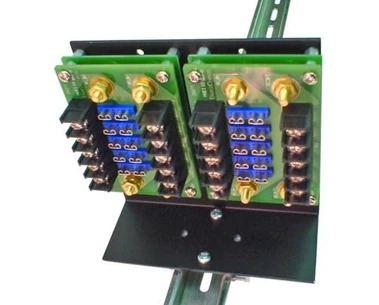

DIN rail distribution block, 10 fuse
- SKU:
- DIN-10-75
- MPN:
- DIN-10-75
- Condition:
- New
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
Description
Manufacturer Part Number: DIN-10-75
The DuraComm DIN-10-75 is designed to distribute power across ten individually fused output circuits. It supports common 12 V, 24 V, and 48 V DC systems, making it suitable for telecommunications equipment, radio systems, control panels, and other low-voltage DC installations. The unit accepts ATC/ATO automotive blade fuses, which are sold separately.
Designed for convenient installation and circuit protection, the DIN-10-75 includes positive and negative bus bars and supports mounting on TS-35/7.5 or TS-35/15 DIN rails. Each fuse position supports up to 20 A, while the manufacturer's specification limits the total panel current to 75 A. Its compact design helps organize DC wiring and simplifies maintenance when individual circuits require inspection or fuse replacement.
Key Features
- 10 fused output positions
- 12 V, 24 V and 48 V DC compatibility
- 20 A maximum per fuse position
- 75 A maximum continuous panel current
- Positive and negative bus bars
| Mechanical Specification | |||||
| Please contact an RFWEL Power specialist if you have questions on the specs. |
