Digital Loggers

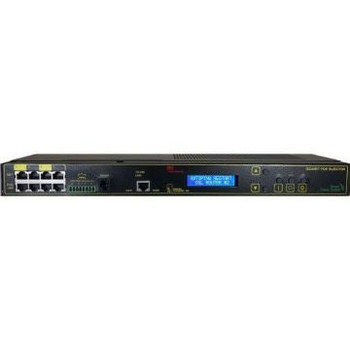

Digital Loggers Gigabit Midspan PoE with AutoPing

(No reviews yet) Write a Review
SKU:
GPOE
MPN:
GPOE
Condition:
New
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
$358.44
Frequently bought together:

Description

Manufacturer Part Number: GPOE

The DLI GPOE Injector adds reliability and simplifies installations by reducing cabling and eliminating need for bulky UPS, separate POE injectors, surge suppressors and power bricks. One GPOE unit powers, controls and reboots any POE device securely from any web browser. It is ideal for data centers.

Power, control and remotely reboot any 48 volt POE device including uplink radios, IP cameras, switches, routers and access points. Dual gas-tube and SIDAC protectors on the POE lines provide clean, safe power to keep your equipment running rock-solid. Four multi-purpose relays control any external AC or DC device. Uses include chargers, fans, alarms and IT gear. Relays are controlled by web, scripts or Auto-Ping

Key Features

  • Four individual POE circuits are switched with up to 50W of power per port
  • Run on AC/ DC supplies. Directly connect 48V battery string for uninterrupted power withoout a UPS
  • Separate 10/100 control port with static IP allows reliable connection anywhere on your LAN or WAN.
  • Multiple power-up recovery modes add safety: timed, sequential on, all-off, last state, user control
  • Flexible design with no internal hub/ switch. PoE ports support 10/100/1000 8-wire (four pair) power

Key Specifications
Device Type Power Monitor, Power Control, Remote Switch
Communication Protocol 10/100/1000 Ethernet
Communication Interface RJ45
Additional Features Web Monitor, Web Control, Auto-Ping
Electrical Specification
Input Voltage Range 90 - 130 V
Mechanical Specification
Mounting 1U Rack Mount, Rack Mount, Wall Mount
Dimensions (Inches) 17 x 6.25 x 1.75
Weight 7.1 lb
Operating Temperature -30 degF to 170 degF
Relative Humidity 80%, Non-Condensing
Legal, Regulatory & Compliance
Compliance FCC
Please contact an RFWEL Remote Power Solutions Specialist if you have questions on the specs.
