802.3af Compatible BT-CAT5-P1 PoE Passive Injector COMP
- SKU:
- BT-CAT5-P1
- MPN:
- BT-CAT5-P1
- Condition:
- New
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
Description
Manufacturer Part Number: BT-CAT5-P1

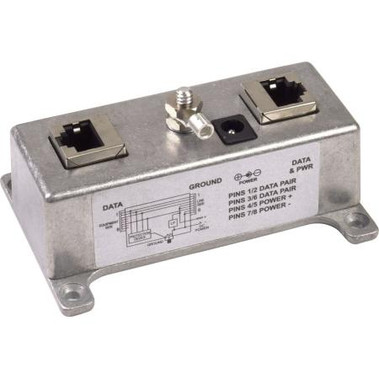

The L-Com BT-CAT5-P1 is a commercial-grade single-port CAT5 passive Power over Ethernet (PoE) midspan/injector designed to deliver DC power to compatible PoE network equipment through standard Ethernet cabling. It supports the IEEE PoE pinout, using pins 4 and 5 for positive power and pins 7 and 8 for negative power. The unit can also be used as a passive tap to extract injected DC power for compatible non-PoE equipment.
The BT-CAT5-P1 features an industrial-grade cast-aluminum housing, shielded RJ45 connectors, integrated lightning and surge protection, and a dedicated grounding terminal. Its passive design is suitable for wireless LAN access points, bridges, IP surveillance cameras, VoIP phones, Wi-Fi amplifiers, and other compatible network equipment.
Key Features
- Provides DC power to one compatible PoE device through an Ethernet cable, reducing the need for separate power and data cables.
- Flexible 5 to 48 VDC Input
- Uses shielded RJ45 jacks to help reduce electromagnetic interference and maintain reliable network connectivity.
- Lightning and Surge Protection
| Electrical Specification | ||||||
| Current Input (Amps) | 1 | |||||
| Power Output Interface | RJ45 | |||||
| Mechanical Specification | ||||||
| Please contact an RFWEL Power specialist if you have questions on the specs. | ||||||
