Rfwel Infra
746 - 787 MHz 10dBi Sector Antenna (LTE Band 13)
(No reviews yet)
Write a Review
- SKU:
- RFWAT07PNF
- MPN:
- RFWAT07PNF
- Condition:
- New
- Availability:
- In Stock - Ships Same Day
- Minimum Purchase:
- 1 unit
Frequently bought together:
Description
Manufacturer Part Number: RFWAT07PNF

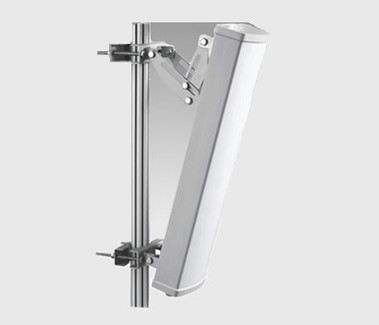

746-787 MHz Panel antenna with 10dBi gain.
Key Features
- Covers 746-787 MHz frequency range with 10 dBi gain
- Includes N-Female (Jack) connector
| Key Parameters | |
| Device Type | 4G LTE Antenna |
| Color | White |
| Compatible Brands | Universal |
| Connectivity | 4G |
| Antenna Properties | Sector Antenna |
| Additional Features | Mounting Kit Included |
| Frequency Bands | 700 MHz, LTE Band 13 |
| Electrical Specification | |
| Frequency | 746 - 787 MHz |
| Gain | 10 dBi |
| Vertical/Elevation (EL) Beam Width | 25 deg |
| Horizontal/Azimuthal (AZ) Beam Width | 120 deg |
| VSWR | 1.5 : 1 |
| Polarization | Vertical |
| Max Power | 50 Watts |
| Front-to-Back Ratio (F2B) | 20 dB |
| Mechanical Specification | |
| Connector Type | N-Female |
| Dimensions (Inches) | 31.5 x 11.33 x 5.2 |
| Weight | 16.5 lb |
| Please contact an RFWEL Indoor Coverage specialist if you have questions on the specs. | |
Related Products
. . . search for additional items with specific features using the Antennas filter.
Warranty Information
Manufacturer warranty runs for 1 year from delivery date. Rfwel Engr support handles warranty repairs/replacements for this item.
