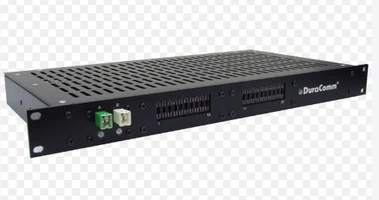

20-Position 1U Dist. Panel, Blade Fuses, 150A

Manufacturer Part Number: DP-20ATC-2JC-12

The DP-20ATC-2JC-12 is a 1U rack-mount DC power distribution panel designed to distribute 12 V power across multiple circuits in telecommunications systems, radio installations, network cabinets, and other low-voltage applications. It provides 20 individually fused output positions using automotive-style ATC/ATO, ATM, Mini, or Micro blade fuses, which are not included. The panel also includes two separate high-current JCASE fuse circuits, allowing up to 22 circuits to be supplied from a single DC power source.

Designed for flexible DC distribution, the panel supports a maximum total current of 150 A, with up to 75 A per 10-fuse block and 15 A per standard blade-fuse output. Each JCASE circuit supports up to 40 A. Three green LED indicators show input power status and the status of the two JCASE circuits. Its isolated inputs and outputs support floating or negative-ground installations, while rear-mounted barrier strips simplify wiring and front-accessible fuses make inspection and replacement convenient. One 30 A JCASE fuse and one 40 A JCASE fuse are included.

Key Features

• 20 blade-fuse output positions
• 10 to 15 VDC input range for nominal 12 V systems
• 150 A maximum total panel current
• 75 A maximum per 10-fuse block
• 40 A maximum per JCASE circuit
