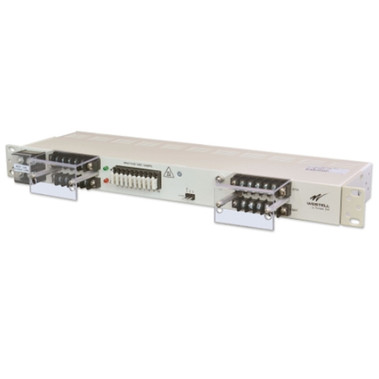

10 Position Single Bus 15A GMT Fuse Panel

Manufacturer Part Number: NPGMT1122

The Westell NPGMT1122 is a rack-mounted DC power distribution panel designed for telecommunications equipment, wireless networks, central offices, remote sites, and other network installations. It provides 10 GMT fuse positions on a single bus, distributing DC power to connected equipment while providing individual circuit protection. The panel supports nominal ±24 VDC and ±48 VDC systems, with a specified operating range of approximately ±22 to ±58 VDC.

Designed for convenient front access, the NPGMT1122 places its input connections, fused outputs, fuses, and alarm connections at the front of the panel. It supports GMT fuses rated up to 15 A, with a maximum total panel output of 70 A. Front-panel status LEDs help identify fuse or circuit conditions, while Form C relay contacts allow alarm signals to be extended to external monitoring equipment. The compact 1U design fits standard 19-inch or 23-inch equipment racks.

Key Features

• 5A current rating
• 80V DC voltage rating
• 600A interrupt rating
• Snap-action switching mechanism
• Integrated handle guard
