Weatherproof Hi-Power CAT5 Lightning Surge Protector

Manufacturer Part Number: AL-CAT5HPWT

High-performance weatherproof surge protector for 10/100 Base-T networks, compatible with Power-over-Ethernet (PoE) devices.

The AL-CAT5HPWT is a premium surge protection device designed to safeguard 10/100 Base-T networks against power surges and lightning strikes. Its three-stage protection system ensures reliable performance in outdoor applications.

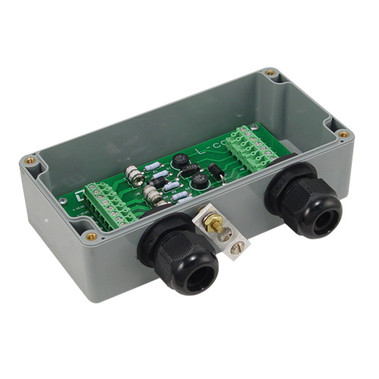

This weatherproof surge protector is engineered to provide exceptional protection for both Ethernet data pairs and PoE DC power feeds. It supports both modes A and B of the 802.3af standard, making it an ideal choice for various PoE devices. In the event of a catastrophic surge, the device switches to a failsafe mode, effectively disconnecting sensitive equipment to prevent damage. The durable ABS enclosure features a gasketed cover and concealed mounting holes, ensuring reliable outdoor use. Installation is made easy with removable screw terminal strips and a ground clamp for earth grounding.

Key Features

• Superior to diode or TVS only based designs
• Three-Stage protection
• Weatherproof ABS enclosure with removable screw terminal blocks
• 802.3af Modes A and B Power-Over-Ethernet
• Individual protection for all 8 wires
