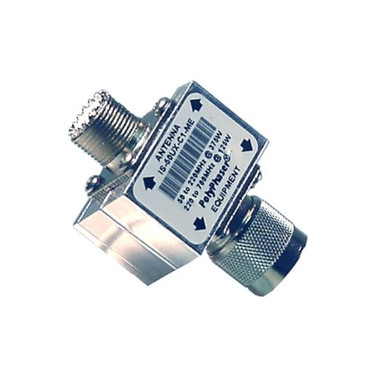

Polyphaser IS-50NX-C1-ME Flange Mount Arrestor, UHF Female - UHF Male

(No reviews yet) Write a Review
SKU:
IS-50UX-C1-ME
UPC:
748528966254
MPN:
IS-50UX-C1-ME
Condition:
New
Availability:
contact us for ESD
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
$109.95
Frequently bought together:

Description

Manufacturer Part Number: IS-50UX-C1-ME

Polyphaser IS-50UX-C1-ME flange mounted general coverage coaxial lightning protection for 50 MHz to 700 MHz with UHF Female/ UHF Male Connectors. It is designed to protect against lightning events.

Key Features

  • Broad frequency ranges from 50 MHz to 700 MHz
  • UHF-Female/ UHF-Male Connectors Type
  • Insertion Loss less than 0.10 dB
  • Max surge rating of 50kA
  • Flexible non-weatherized flange mounting option

Key Specifications
Device Type Coax Protection
Electrical Specification
Frequency Range DC - 0.7 GHz
Rated Impulse Discharge (8/20us Wave) 50 kA
Insertion Loss (at Fmax) 0.1 dB
VSWR 1.2 :1
Impedance 50 Ohms (Ω)
Mechanical Specification
Mounting L-Bracket
Dimensions (Inches) 1.75 x 1.5 x 2.45
Weight 0.5 lb
Connector 1 UHF Female
Connector 2 UHF Male
Please contact an RFWEL Remote Power Solutions Specialist if you have questions on the specs.

Compare Related Lightning Protection Specs
Item Rated Discharge (8/20us) Max Frequency Connectors
IS-50NX-C0

IS-50NX-C0 image

50 kA 0.7 GHz N-Female - N-Female
IS-50NX-C0-MA

IS-50NX-C0-MA image

50 kA 0.7 GHz N-Male - N-Female
IS-50NX-C0-ME

IS-50NX-C0-ME image

50 kA 0.7 GHz N-Female - N-Male
IS-50NX-C2-MA

IS-50NX-C2-MA image

50 kA 1 GHz N-Female - N-Male
IS-50NX-C2-ME

IS-50NX-C2-ME image

50 kA 1 GHz N-Female - N-Male
IS-50UX-C0

IS-50UX-C0 image

50 kA 0.7 GHz UHF Female - UHF Female

. . . search for additional items with specific features using the Lightning Protection filter.

Quick Links

Datasheet

Power Backup Solutions (for Wireless)

Select Case Studies

Support Knowledge Base

Search IS-50UX-C1-ME articles

Discuss in the Forums

Search IS-50UX-C1-ME posts

Ask a Question

Reference Power Solutions Drawings


Select Content

Lightning Surge Protection for Coaxial Cable Networks

View More Engineering Articles ...

View AllClose

Warranty Information

Manufacturer warranty runs for 1 year from delivery date. Rfwel Engr support handles warranty repairs/replacements for this item.
View AllClose

Additional Information

Device Type:
Coax Protection
Mounting:
L-Bracket
Weight (Lb):
0.5
Max Frequency (GHz):
0.7
Surge (8/20us Wave) (kA):
50
Max Insertion Loss (dB):
0.1
VSWR (x:1):
1.2
Impedance (Ohms):
50
Connector 1:
UHF Female
Connector 2:
UHF Male
