Outdoor CAT6 Hi-Power Lightning Protector with RJ45 Jacks

Manufacturer Part Number: AL-CAT6HPJW

The HyperLink AL-CAT6HPJW Lightning Protector offers exceptional surge protection for outdoor CAT6 Ethernet networks, ensuring reliable connectivity.

Designed for 10/100/1000 Base-T Ethernet networks, the AL-CAT6HPJW provides superior lightning and surge protection. With low capacitance to minimize signal distortion, it meets GR-1089 surge protection standards and is compatible with Power-over-Ethernet (PoE) devices.

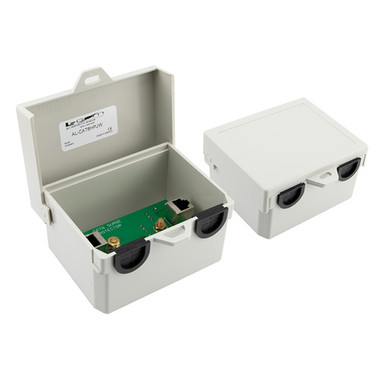

The AL-CAT6HPJW Lightning Protector is engineered to protect Ethernet networks from lightning and surges. It features a weather-resistant enclosure, locking hinged cover, and adjustable cable grommet for various cable sizes. This device is ideal for long cable runs, allowing for dual installation at both ends for maximum protection. It supports PoE modes A and B, isolating the cable shield from the safety ground to prevent ground loops. Compatible with CAT6, CAT5e, and CAT5 cables, it is perfect for various applications including IP cameras and wireless access points.

Key Features

• Impact and weather resistant enclosure
• Locking hinged cover for security
• Power-Over-Ethernet (PoE) compatible
• Isolation of cable shield from safety ground
• GR-1089 Intra-Building rated
