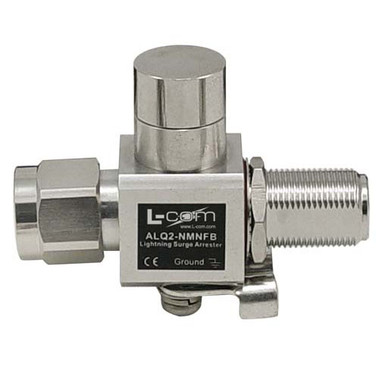

N-Male to N-Female Bulkhead Surge Protector - 2.3 to 2.7 GHz

Manufacturer Part Number: ALQ2-NMNFB

High-performance N-Male to N-Female surge protector for effective lightning and surge protection in wireless applications.

The HyperLink ALQ2-NMNFB is a state-of-the-art surge protection device designed to safeguard your equipment from lightning strikes and electrical surges. Operating within the frequency range of 2.3 to 2.7 GHz, this 1/4 wave protector ensures optimal performance while effectively diverting harmful surges to the ground.

This N-Male to N-Female surge protector is engineered to pass desired frequencies while suppressing lightning surges. Its non-gas tube design allows for multi-strike capability and a fast response time, making it suitable for various applications, including IEEE 802.11b, 802.11g, and 802.11n. The unit features two ground lugs for superior grounding and can be installed in either direction, ensuring protection regardless of installation orientation. The bulkhead connector comes with a rubber 'O'-ring seal for secure mounting, and an optional stainless steel mounting bracket is available for added convenience. Note: This protector is not suitable for coaxial cables carrying DC voltage.

Key Features

• Bi-Directional protection
• Competitively priced
• High quality construction
• Multi-Strike capability
• No gas tube element to replace
