Laird Technologies

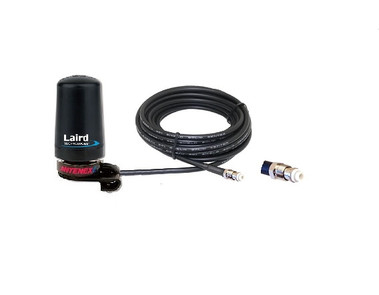

Low Profile Cellular/Wi-Fi Trunk Lid Mount Antenna, 17 ft Cable, FME

(No reviews yet) Write a Review
SKU:
TRAB806/17103_TMB8UFMEFI
MPN:
TRAB806/17103+TMB8UFMEFI
Condition:
New
Availability:
Usually Ships Next Day
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
$139.95
Frequently bought together:

Description

Manufacturer Part Number: TRAB806/17103+TMB8UFMEFI

This is a discounted combo product combining: TRAB806/17103 (Laird 806 - 2500 MHz, 6 dBi, Low Profile NMO Antenna) & TMB8UFMEFI (Laird TMB8UFMEFI Antenna Mount & Bracket)

The TRAB806/17103 multi-band Laird Phantom is specified by public safety, military, utility and transportation providers and installed on Apache, Black Hawk and Chinook helicopters and Humvee and Bradley military vehicles around the world. It operates simultaneously on 7 bands (AMPS/Cellular, IDEN, GSM, GPS, DCS, PCS, UMTS, ISM/WiFi).

Antenex/Laird Technologies Mini-Trunk Lid Mount with 17' RG58U Cable, FME/Female Crimp (Installed)

Key features of combo

  • Compatible with all US 4G LTE frequencies and common global frequency bands
  • Requires metal ground plane (e.g., roof of car, kiosk body, metal enclosure wall, etc)
(click above on links to combo items to learn more)

Key Antenna Parameters
Antenna Category 4G LTE Antennas, Wi-Fi Antennas
Color Black
Antenna Type Omni
Frequency Bands LTE Band 2, LTE Band 4, LTE Band 5, LTE Band 10, LTE Band 23, LTE Band 25, LTE Band 26, LTE Band 27, LTE Band 29, LTE Band 30, LTE Band 35, LTE Band 36, LTE Band 37, LTE Band 66, LTE Band 70
Electrical Specification
Frequency 806 - 890 MHz 1710 - 2170 MHz 2400 - 2500 MHz 1575.42 - 1575.42 MHz
Gain 5.9 dBi 4.4 dBi 3 dBi 5.1 dBi
VSWR 2 : 1 2 : 1 2.5 : 1 2 : 1
Impedance 50 Ohms
Polarization Dual-Linear (Vertical/ Horizontal)
Max Power 100 Watts
Mechanical Specification
Connector Type NMO
Construction Material ABS
Mounting No Mount Included
Dimensions (Inches) 1.44 x 1.44 x 2.3
Weight 0.2 lb
Please contact an RFWEL Antenna specialist if these specs do not meet your needs or for custom antenna design.

NMO Antenna Mount Specifications
Device Type NMO Antenna Mount
Mechanical Specification
Cable Type RG-58
Connector 1 No Installed Connector
Connector 2 FME-Female
Cable Length 17 ft
Connector 1 Bulkhead No
Connector 2 Bulkhead No
Please contact an RFWEL Wireless Infrastructure Specialist if you cannot find the NMO Antenna Mount for your project.

See below for additional motorola style mount options:

  • 3/4" Permanent Hole (NMO) Brass Mounts
  • 3/8" Permanent Hole (NMO) Brass Mounts
  • 3/4",3/8", 5/8" Alternative (NMO) Mounts
  • 3/4" Magnetic Mounts (80lb pull strength)
  • 3/4" Mini-Magnetic Mounts (50lb pull strength)
  • Mobile Mount Kits & Brackets (Mirror mount & L-Brackets)
  • Mini-Trunk Lid Bracket w/ Mount

icon_exclamation Contact us if you cannot find the antenna mount you need or need custom length/ custom connector or for general questions on antennas, cables, connectors.

Antenna Mount Options
Antenex (Laird Technologies) 3/4" Permanent Hole (NMO) Brass Mounts
3/4" NMO Mount, 17' Cable MB195SMI 3/4" Hole Brass NMO Mount with 17' LMR-195 Cable, SMA/Male Crimp (Installed)
3/4" NMO Mount, 17' Cable MB195FMEF 3/4" Hole Brass NMO Mount with 17' LMR-195 Cable, FME/Female Crimp (Loose)
3/4" NMO Mount, 17' Cable MB240SMI 3/4" Hole Brass NMO Mount with 17' LMR-240 Cable, SMA/Male Crimp (Installed)
3/4" NMO Mount, 17' Cable MB240FMEF 3/4" Hole Brass NMO Mount with 17' LMR-240 Cable, FME/Female Crimp (Loose)
3/8" NMO Mount w/ Teflex Cable MBDFMEFI Antenex 3/4" Hole Brass NMO Mount with 17' Teflex Cable, FME/Female Crimp (Installed)
MBDNI Antenex 3/4" Hole Brass NMO Mount with 17' Teflex Cable, N/Male Crimp (Installed)
MBDSMI Antenex 3/4" Hole Brass NMO Mount with 17' Teflex Cable, SMA/Male (Installed)

MBFFMEFI Antenex 3/4" Hole Brass NMO Mount with 17' Teflon Cable, FME/Female (Installed)
MBFSMI Antenex 3/4" Hole Brass NMO Mount with 17' Teflon Cable, SMA/Male (Installed)
3/8" NMO Mount w/ Teflex Cable MBFNI Antenex 3/4" Hole Brass NMO Mount with 17' Teflon Cable, N/Male (Installed)
3/4" NMO Mount, 17' Cable MB8UFMEFI Antenex 3/4" Hole NMO Mount with 17' RG58U Cable (FME Female)
3/4" NMO Mount, 17' Cable MB8UMI Antenex 3/4" Hole NMO Mount with 17' RG58U Cable
3/4" NMO Mount, 17' Cable MB8UNI Antenex 3/4" Hole NMO Mount with 17' RG58U Cable (N Male)
3/4" NMO Mount, 17' Cable MB8UTI Antenex 3/4" Hole NMO Mount with 17' RG58U Cable (TNC Male)
Antenex (Laird Technologies) 3/8" Permanent Hole (NMO) Brass Mounts
3/8" Permanent Hole NMO Mount MAB195FMEFI 3/8" Hole Brass NMO Mount with 17' LMR-195 Cable, FME/Female Crimp (Installed)
3/8" Permanent Hole NMO Mount MAB240SMI 3/8" Hole Brass NMO Mount with 17' LMR-240 Cable, SMA/Male Crimp (Installed)
3/8" Permanent Hole NMO Mount MAB240FMEFI 3/8" Hole Brass NMO Mount with 17' LMR-240 Cable, FME/Female Crimp (Installed)
3/8" NMO Mount w/ Teflex Cable MABDFMEFI Antenex 3/8" Hole Brass NMO Mount with 17' Teflex Cable, FME/Female (Installed)
3/8" NMO Mount w/ Teflex Cable MABDNI Antenex 3/8" Hole Brass NMO Mount with 17' Teflex Cable, N/Male Crimp (Installed)
3/8" NMO Mount w/ Teflex Cable MABDSMI Antenex 3/8" Hole Brass NMO Mount with 17' Teflex Cable, SMA/Male (Installed)
3/4" NMO Mount, 17' Cable MAB8U Antenex 3/8" Hole NMO Mount with 17' RG58U Cable (No Connector)
3/4" NMO Mount, 17' Cable MAB8UFMEFI Antenex 3/8" Hole NMO Mount with 17' RG58U Cable (FME Female)
3/4" NMO Mount, 17' Cable MAB8UMI Antenex 3/8" Hole NMO Mount with 17' RG58U Cable
3/4" NMO Mount, 17' Cable MAB8UNI Antenex 3/8" Hole NMO Mount with 17' RG58U Cable (N Male)
3/4" NMO Mount, 17' Cable MAB8UTI Antenex 3/8" Hole NMO Mount with 17' RG58U Cable (TNC Male)
Antenex (Laird Technologies) 3/4",3/8", 5/8" Alternative (NMO) Mounts
Alternative Hole NMO MBO Antenex 3/4" Hole Brass NMO Mount for RG58 Size Cable (Cable, Connector not Included)
Alternative Hole NMO MABO Antenex 3/8" Hole Brass NMO Mount for RG58 Size Cable (Cable, Connector not Included)
5/8" Hole N-Female Mount VTPM800 Antenex (Laird Technologies) 5/8" Hole Alternative Mount, N/Female Connector
3/4" or 3/8" NMO Adjustable MABVTO Antenex 3/4" or 3/8" Hole Brass NMO Thick Plane Adjustable Mount (to 1/2") (Cable, Connector not Included)
Adjustable NMO Mount MABT8USMI Antenex 3/4" or 3/8" Hole Brass NMO Thick Mount (up to 1/4") with 17' RG58U Cable, SMA/Male Crimp (Installed)
Antenex (Laird Technologies) 3/4" Magnetic Mounts (80lb pull strength)
3/4" Laird magnet mount GB8UFMEFI Antenex/Laird Technologies 3/4" Style Magnetic Mount Base (No Rubber Boot) with 12' RG58U Cable, FME/Female Crimp (Installed)
3/4" Laird magnet mount GB8UNSI Antenex/Laird Technologies 3/4" Style Magnetic Mount Base (No Rubber Boot) with 12' RG58U Cable, N/Male Solder (Installed)
3/4" Laird magnet mount GB8USMI Antenex/Laird Technologies 3/4" Style Magnetic Mount Base (No Rubber Boot) with 12' RG58U Cable, SMA/Male Crimp (Installed)
3/4" Laird magnet mount GBDFMEFI Antenex/Laird Technologies 3/4" Style Magnetic Mount Base (No Rubber Boot) with 12' Teflex Cable, FME/Female Crimp (Installed)
3/4" Laird magnet mount GBDNSI Antenex/Laird Technologies 3/4" Style Magnetic Mount Base (No Rubber Boot) with 12' Teflex Cable, N/Male Solder (Installed)
3/4" Laird magnet mount GBDSMI Antenex/Laird Technologies 3/4" Style Magnetic Mount Base (No Rubber Boot) with 12' Teflex Cable, SMA/Male Crimp (Installed)
Antenex (Laird Technologies) 3/4" Mini-Magnetic Mounts (50lb pull strength)
3/4" Laird mini-magnet mount GMB8UFMEFI Antenex/Laird Technologies 3/4" Style Mini-Magnetic Mount Base (No Rubber Boot) with 12' RG58U Cable, FME/Female Crimp (Installed)
3/4" Laird mini-magnet mount GMB8UNSI Antenex/Laird Technologies 3/4" Style Mini-Magnetic Mount Base (No Rubber Boot) with 12' RG58U Cable, N/Male Solder (Installed)
3/4" Laird mini-magnet mount GMBDSMI Antenex/Laird Technologies 3/4" Style Mini-Magnetic Mount Base (No Rubber Boot) with 12' Teflex Cable, SMA/Male Crimp (Installed)
3/4" Laird mini-magnet mount GMBDNSI Antenex/Laird Technologies 3/4" Style Mini-Magnetic Mount Base (No Rubber Boot) with 12' Teflex Cable, N/Male Solder (Installed)
Antenex (Laird Technologies) Mobile Mount Kits & Brackets
mirror mount LBM9034 90 Degree Mirror Mount "L" Bracket, 3/4" Hole
mirror mount LBM9038 90 Degree Mirror Mount "L" Bracket, 3/8" Hole
Mirror Mount w/ Cable Installed LBMB8NSI Antenex/Laird Technologies Mirror Mount Bracket with 3/4" Mount with 17' RG58 Cable, N/Male Solder (Installed)
Mirror Mount w/ Cable Installed LBMB8SMI Antenex/Laird Technologies Mirror Mount Bracket with 3/4" Mount with 17' RG58 Cable, SMA/Male Crimp (Installed)
Mirror Mount w/ Cable Installed LBMB8FMEFI Antenex/Laird Technologies Mirror Mount Bracket with 3/4" Mount with 17' RG58 Cable, FME/Female Crimp (Installed)
Antenex (Laird Technologies) Mini-Trunk Lid Bracket w/ Mount
TMB8UFMEFI Antenex/Laird Technologies Mini-Trunk Lid Mount with 17' RG58U Cable, FME/Female Crimp (Installed)
TMB8UNSI Antenex/Laird Technologies Mini-Trunk Lid Mount with 17' RG58U Cable, N/Male Solder (Installed)
TMB8USMI Antenex/Laird Technologies Mini-Trunk Lid Mount with 17' RG58U Cable, SMA/Male Crimp (Installed)
LBT3400 Stainless Steel "L" Bracket for Trunk Groove, 3/4" Hole
LBT3800 Stainless Steel "L" Bracket for Trunk Groove, 3/8" Hole
LBT8 Stainless Steel "L" Bracket for Trunk Groove, 3/4" Hole with NMO mount and Cable, No Connector
Hood Mount bracket SBH3400 Stainless Steel Antenna Mount Hood bracket with 3/4" hole for Dodge Ram Trucks
