Linx ANT-MAG-RPSF-NM-1 RP-SMA Male Jack Magnetic Mount with LMR195 Connector

(No reviews yet) Write a Review
SKU:
ANT-MAG-RPSF-NM-1
MPN:
ANT-MAG-RPSF-NM-1
Condition:
New
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
$41.48
Frequently bought together:

Description

Manufacturer Part Number: ANT-MAG-RPSF-NM-1

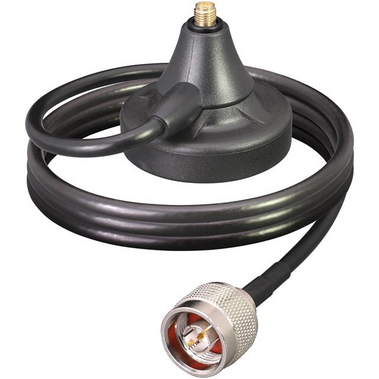

Linx ANT-MAG-RPSF-NM-1 is an intergrated magnetic antenna connector base mount equipped with RP-SMA male jackpin terminating in a male N-Plug connector with LMR195 low-loss coaxial connection cable allowing for installation of most whip/blade style connectorized antennas.

Key Features

  • Features a RP-SMA male jack pin right-angled magnetic base terminating in a male N-Plug socket.
  • The low-loss LMR195 coaxial cable connector reduces signal losses from the antenna.
  • Equipped with a silicone gasket to aid seal to the antenna boosting the IP67 rating of the mount.
  • Ideal for wide range of applications including cellular, LPWA, IoT device applications.

Specifications
Device Type Magnetic Antenna Mount
Electrical Specification
Impedance 50 Ohms (Ω)
Mechanical Specification
Mounting Magnetic Antenna Mount
Weight 0.35 lb
Operating Temperature -40 degF to 200 degF
Weatherproofing IP67
Construction Material Brass, Gold
Connector 1 RPSMA-Male (Right Angle)
Connector 2 N-Male
Connector Gender Male-to-Male
Cable Length 3.3 ft
Please contact an RFWEL Wireless Infrastructure Specialist if you have questions on the specs.

Related Products

. . . search for additional items with specific features using the Antenna Connector Mount filter.

Quick Links

Datasheet

Signal Booster Kits

Best LTE Antennas

Search Cable Adapters

Indoor coverage solutions

Support Knowledge Base

Search ANT-MAG-RPSF-NM-1 articles

Discuss in the Forums

Search ANT-MAG-RPSF-NM-1 posts

Ask a Question

Reference Wireless Infra Drawings

View AllClose

Warranty Information

Manufacturer warranty runs for 1 year from delivery date. Rfwel Engr support handles warranty repairs/replacements for this item.
View AllClose

Additional Information

Device Type:
Magnetic Antenna Mount
Mounting:
Magnetic Antenna Mount
Weight (Lb):
0.35
Min Operating Temp (degF):
-40
Max Operating Temp (degF):
200
Weatherproofing:
IP67
Construction:
Brass
Construction:
Gold
Impedance (Ohms):
50
Connector 1:
RPSMA-Male (Right Angle)
Connector 2:
N-Male
Cable Length (ft):
3.3
