Johnson controls

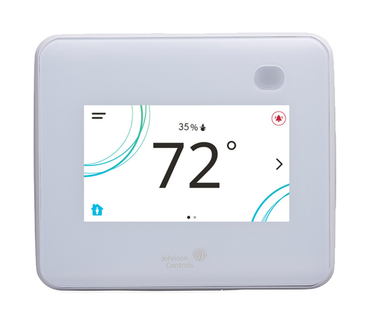

Johnson Controls TEC3612-16-000 Networked Thermostat with Dehumidification

(No reviews yet) Write a Review
SKU:
TEC3612-16-000
MPN:
TEC3612-16-000
Condition:
New
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
$469.95
Frequently bought together:

Description

Manufacturer Part Number: TEC3612-16-000

Johnson Controls TEC3612-16-000 is a field-selectable BACnet MS/TP or N2 communicating thermostat commonly used with fan coil units, rooftop units, and heat pumps that utilize On/Off or floating fan coil mechanism in their operation making it ideal for commercial applications. The themostat features an included USB port allowing for quick installation and configuration of the thermostat. Equipped with a LCD touchscreen display and a built-in humidity sensor to support dehumidification.

Key Features

  • Features a field-selectable BACnet MS/TP or N2 communication protocol for remote control.
  • Equipped with a built-in humidity sensor allowing for humidity control of the indoor climate.
  • Features On/Off or floating fan coil operation.
  • Features a volatile programming memory with intuitive backlit color LCD touchscren display.

Installation Available

RFWEL Engr provides installation assistance for Non-Wireless Thermostats. Please contact us for an estimate.

Key Specifications
Color White
Display Full Color, Touchscreen
Communication Protocol BACnet
Control Style Touch
Dehumidification Control Yes
Additional Features Dehumidifaction Control, Humidity Sensor, Lockable, USB Port
Electrical Specification
Input Voltage (AC) 24 VAC
Input Voltage Range 19 - 30 V
Mechanical Specification
Dimensions (Inches) 5.63 x 4.72 x 1.4
Weight 0.75 lb
Operating Temperature 32 degF to 122 degF
Relative Humidity 95%, Non-Condensing
Please contact an RFWEL HVAC Controls Tech if you have questions on the specs.

Related Products

. . . search for additional items with specific features using the Non-Wireless Thermostats filter.

Quick Links

Datasheet

Wireless HVAC Control

Support Knowledge Base

Search TEC3612-16-000 articles

Discuss in the Forums

Search TEC3612-16-000 posts

Ask a Question

Reference HVAC Control Drawings


Select Content

Venstar T1700 Frequently Asked Questions

View More Engineering Articles ...

View AllClose

Warranty Information

Manufacturer warranty runs for 1 year from delivery date. Rfwel Engr support handles warranty repairs/replacements for this item.
