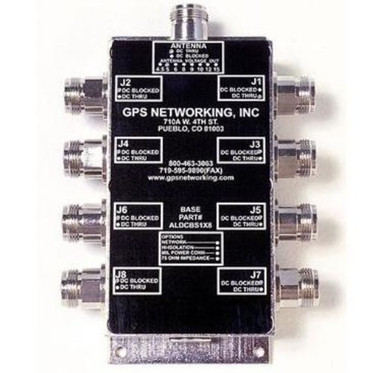

Active Antenna Splitter NALDCBS1X8-N/5/110 1x8 AC, N-Female

Manufacturer Part Number: NALDCBS1X8-N/5/110

GPS NETWORKING's NALDCBS1X8 GPS amplified splitter is a one input, eight output device based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS frequencies) with excellent gain flatness. It provides 14 dB of gain with less than 4.3 dB noise figure.

In the network configuration with external power, all RF outputs (J1-J8) are DC blocked and loaded with 200 Ohm resistors to simulate the antenna current draw to prevent false antenna alarm faults. The splitter is supplied with an external 110 VAC power supply.

Key Features

• Frequency range of operation, 1100-1700 MHz
• Maximum VSWR of 1.25
• N-Female RF Connectors
