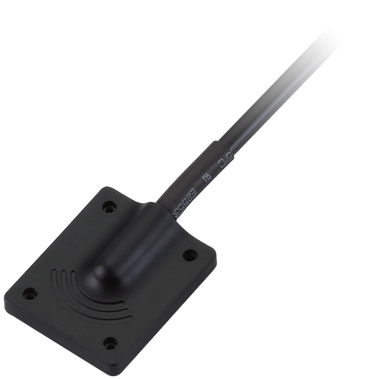

5.9GHz Adhesive Mount DSRC Miniature Antenna
- SKU:
- GSA.8859.A.105111
- MPN:
- GSA.8859.A.105111
- Condition:
- New
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Manufacturer Part Number: GSA.8859.A.105111
The GSA.8859 is an external adhesive mount DSRC antenna for 5850-5925MHz. Primarily designated for vehicle safety applications, DSRC offers high-speed, low-latency wireless communication over short distances.
Key Features
- Operates at a frequency of 5850-5925 MHz
- Has a gain of 4 dBi
- SMA (male) Connector type
- Adhesive Mount on Plastic or Glass
| Key Parameters | ||||||
| Category | Antennas | |||||
| Frequency Bands | 5.9 GHz (C-V2X) | |||||
| Electrical Specification | ||||||
| Frequency | 5850 - 5925 MHz | |||||
| Gain | 4 dBi | |||||
| VSWR | 2.0 : 1 | |||||
| Impedance | 50 Ohms | |||||
| Mechanical Specification | ||||||
| Cable Length | 3.3 ft | |||||
| Dimensions (Inches) | 1.4 x 1.2 x 0.4 | |||||
| Weight | 0.1 lb | |||||
| Operating Temperature | -40 degF to 85 degF | |||||
| Weatherproofing | IP67 | |||||
| Please contact an RFWEL Indoor Coverage specialist if you have questions on the specs. | ||||||
Related Products
. . . search for additional items with specific features using the Antennas filter.
Additional Information
Ranking: |
Best Seller |
Cable Length (ft): |
3.3 |
Frequency Bands: |
5.9 GHz (C-V2X) |
Gain (dBi): |
4 |
Impedance (Ohms): |
50 |
Min Frequency (MHz): |
5850 |
Max Frequency (MHz): |
5925 |
Weatherproofing: |
IP67 |
Weight (Lb): |
0.1 |
