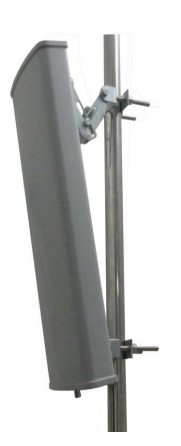

14 dBi 806 - 2700 MHz Panel Antenna, N-Female
- SKU:
- RFWP82715DNF
- MPN:
- RFWP82715DNF
- Condition:
- New
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Manufacturer Part Number: RFWP82715DNF
| Key Parameters | ||||||
| Antenna Properties | Panel | |||||
| Electrical Specification | ||||||
| Frequency | 806 - 960 MHz | 1710 - 2700 MHz | ||||
| Gain | 14 dBi | 14 dBi | ||||
| Vertical/Elevation (EL) Beam Width | 19 deg | 19 deg | ||||
| Horizontal/Azimuthal (AZ) Beam Width | 65 deg | 65 deg | ||||
| Impedance | 50 Ohms | |||||
| Max Power | 100 Watts | |||||
| Mechanical Specification | ||||||
| Connector Type | N-Female | |||||
| Dimensions (Inches) | 52.0 x 11.0 x 4.0 | |||||
| Weight | 21.0 lb | |||||
| Please contact an RFWEL Indoor Coverage specialist if you have questions on the specs. | ||||||
Related Products
. . . search for additional items with specific features using the Antennas filter.
Additional Information
Antenna Properties: |
Panel |
Connectors: |
N-Female |
Impedance (Ohms): |
50 |
Min Frequency (MHz): |
806 |
Max Frequency (MHz): |
2700 |
Weight (Lb): |
21 |
