Tycon Systems POE-MSPLT-4812 48V Passive PoE In, 12V 12W Splitter

(No reviews yet) Write a Review
SKU:
POE-MSPLT-4812
MPN:
POE-MSPLT-4812
Condition:
New
Availability:
Discontinued
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
$49.49
Frequently bought together:

Description

This item is DISCONTINUED/ END-OF-LIFE (EOL).

Manufacturer Part Number: POE-MSPLT-4812

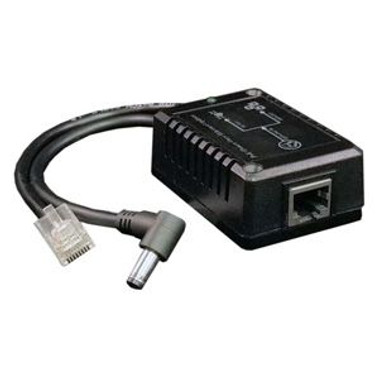

The POE-MSPLT line of dynamic splitters are compact Power over Ethernet adapters which splits the Data and PoE power onto separate output connectors and converts the active PoE (IEEE802.3af/at) input into a regulated DC output voltage. The DC output is provided on a standard 5.5mm/2.5mm barrel connector and the Data output is provided on standard RJ45 network connector, each on a dedicated 6? cable. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload.

Key Features

  • Converts an Active PoE Input to a DC output.
  • Output Power up to 12W.
  • Short Circuit, Over Current Protection.
  • Inputs and outputs are isolated.

Key Specifications
Device Type Passive POE, POE Splitter, IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE
Number of Ethernet Ports 1
Electrical Specification
Power Output Interface 2.5mm Barrel Plug (Male)
Output Voltage (DC) 12 VDC
Output Current 1 A
Power Output 12 Watts
Mechanical Specification
Dimensions (Inches) 2.6 x 1.8 x 1
Weight 0.1 lb
Please contact an RFWEL Remote Power Solutions Specialist if you have questions on the specs.

Compare Related Power Over Ethernet (POE) Specs
Item Type Ethernet Ports
POE-MSPLT-4805

POE-MSPLT-4805 image

Passive POE, POE Splitter, IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE 1
POE-MSPLT-4809

POE-MSPLT-4809 image

Passive POE, POE Splitter, IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE 1
POE-MSPLT-4824

POE-MSPLT-4824 image

Passive POE, POE Splitter, IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE 1
POE-MSPLT-USB

POE-MSPLT-USB image

Passive POE, POE Splitter, IEEE 802.3at (Type 2) POE, IEEE 802.3af (Type 1) POE 1

. . . search for additional items with specific features using the Power Over Ethernet (POE) filter.
