TP-SW5GNC-OUT24 5 Port Gigabit 24VDC POE Switch

(No reviews yet) Write a Review
SKU:
TP-SW5GNC-OUT24
MPN:
TP-SW5GNC-OUT24
Condition:
New
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
$289.95
Frequently bought together:

Description

Manufacturer Part Number: TP-SW5GNC-OUT24

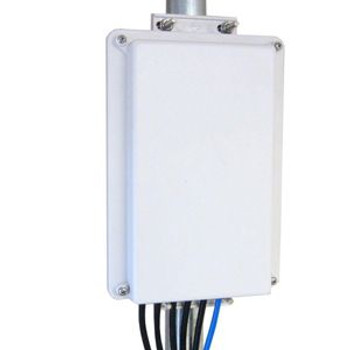

The TP-SWxxNC-OUT series of outdoor POE switch are designed for operation in harsh outdoor environments. The switch can be powered via a wire terminal connector or over POE into the uplink port. This allows the switch to be mounted where it is needed and up to 100m from a power source. By using the switch as a repeater, the useable Cat5 cable distance between power source and user POE devices can be doubled to 200m.

The switch is available in a 5 port Gigabit model and an 8 port 10/100 model and two different POE voltages, a 24VDC POE model and a 48VDC POE model. The model can be changed in the field just by changing the power supply voltage which powers the switch. The switches are supplied with 150W AC to DC power supplies with Gigabit POE inserters.

The 24VDC POE model is compatible with devices like UBNT and Mikrotik. The 48VDC POE model is compatible with any device that complies with the 802.3af/at standard. Applications: Wireless Access Points and Client Devices IP Phone and Security Camera Systems Power Multiple Devices from 1 Data/POE Cable

Key Features

  • High Power Outdoor Passive POE Switch
  • 5 Port Gigabit and 8 Port 10/100 Models with Automatic MDI/MDI-X Crossover
  • Automatic Speed and Duplex Sensing 2K with Self Learning MAC Address Table
  • Switch Powered thru POE to Uplink Port or Wire Terminal
  • Weatherproof UV Protected Enclosure, Pole or Wall Mount with High Temperature Operation


Key Specifications
Device Type IEEE 802.3af (Type 1) POE, IEEE 802.3at (Type 2) POE
Communication Protocol 10/100/1000 Ethernet
Communication Interface RJ45
Compatible Brands Tycon Power Systems
Number of Ethernet Ports 5
Electrical Specification
Input Voltage Range 12 - 57 V
Power Output Interface Type 1 POE (802.3af), Type 2 POE+ (802.3at), RJ45, POE
Output Voltage (DC) 24 VDC
Output Current 2 A
Mechanical Specification
Mounting Pole Mount (up to 4.5 in. dia)
Shape Rectangular
Dimensions (Inches) 11.5 x 7 x 2.5
Weight 2.1 lb
Operating Temperature -4 degF to 167 degF
Relative Humidity 100%, Non-Condensing
Weatherproofing IP65
Output Cable Type CAT5E, CAT6
Please contact an RFWEL Remote Power Solutions Specialist if you have questions on the specs.
